Time of Flight Diffraction Ultrasonic Testing

It is important that storage tanks and pressure vessels meet the highest of industry standards of safety and compliance. Here are NDT Group, we always aim to give you that assurance that you are maintaining the integrity and efficiency of your assets with our range of non-destructive testing services.

To find out more about our Time-of-Flight Diffraction service, please contact our team now for more information. We are used to answering a variety of questions and are looking forward to hearing from you.

What is Time-of-Flight Diffraction?

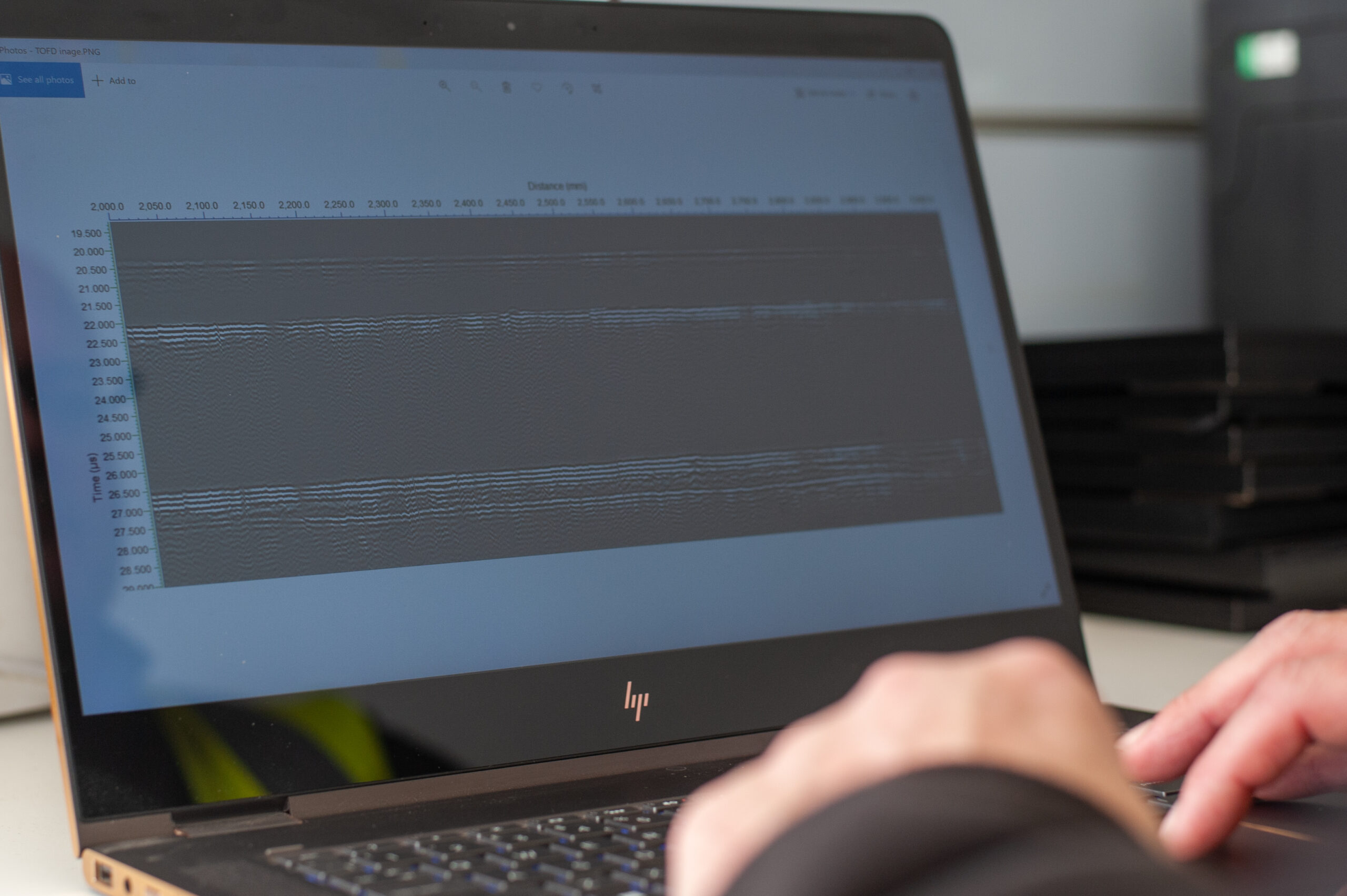

Time-of-Flight Diffraction (ToFD) is a form of Ultrasonic Testing. It uses sound waves to detect cracks and faults deep within structures. Two probes are fitted to the component; one sends out the sound waves and the other collects the return. The results are immediately available, and a permanent record can be kept.

What is Time-of-Flight Diffraction used to detect?

In particular, this method is great for perfectly measuring the dimensions of any internal crack defects and defects of any orientation can be detected. Planer defects that are not perpendicular to the measured surface can be detected.

It is perfect for testing storage tanks, pressure vessels, clad materials, piping, and structural steel.

What limitations does ToFD have?

As there is a “dead zone” that the probes cannot detect, just under the surface of the component, the ToFD method is always used in conjunction with another NDT service. Any welds that it is analysing must be accessible from both sides, and it works best on thicker welds and materials.

Think you might need ToFD testing?

If you are interested in finding out more about how our skilled, multi-disciplinary NDT technicians can support your company, contact us for a conversation about which NDT service you require. We will be delighted to talk with you.

When to use this service

  • For storage tanks and pressure vessels.
  • For pipework.
  • For structural steel.
  • For clad material.

Responsive testing that delivers assurance that your equipment is safe.

Contact us for a quality testing service with a fast report turnaround. We can respond to any challenge.
